A leaf brushing machine is a laboratory instrument that mechanically removes mites, spider mites, and other small arthropods from plant leaf surfaces using rotating brushes combined with a water-washing system. The dislodged organisms are collected on a fine-mesh grid or filter surface where they can be counted and analyzed. It is the standard tool for quantitative spider mite extraction in research, monitoring, and pesticide efficacy testing.

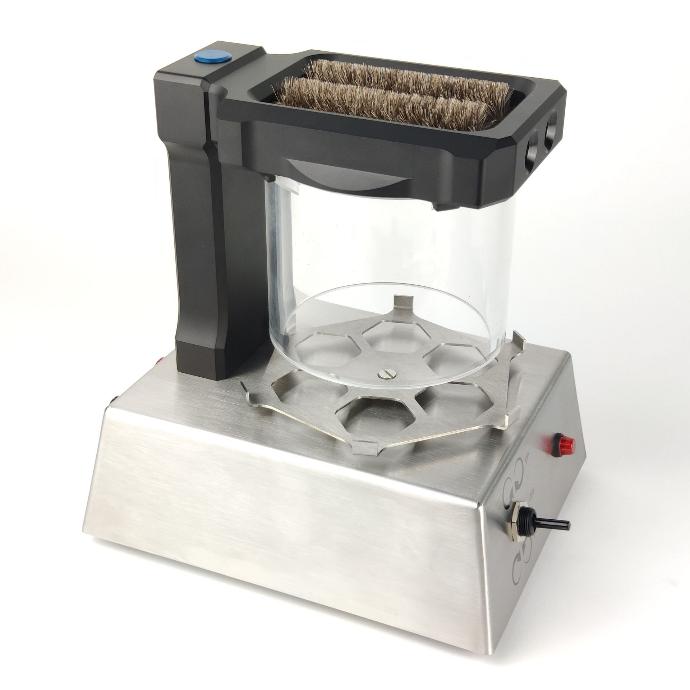

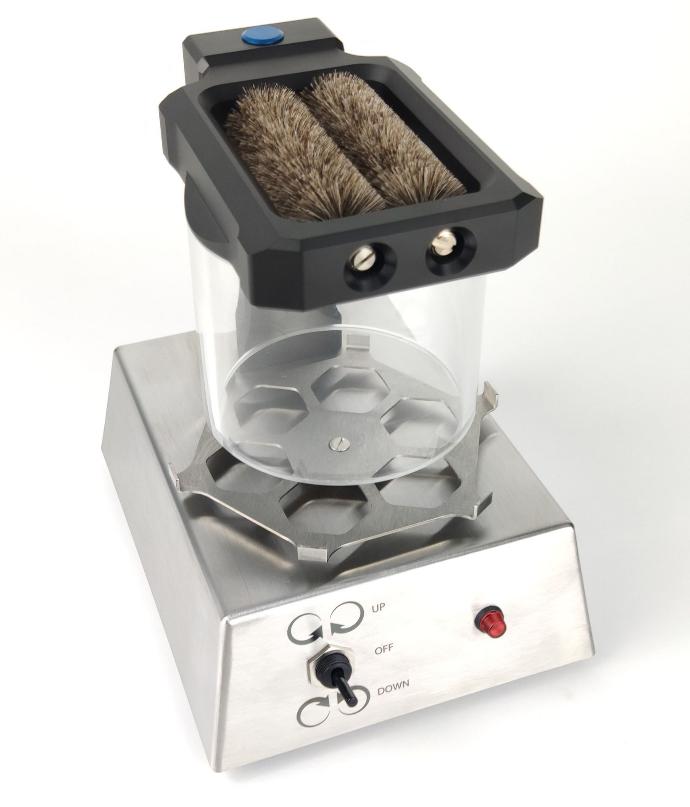

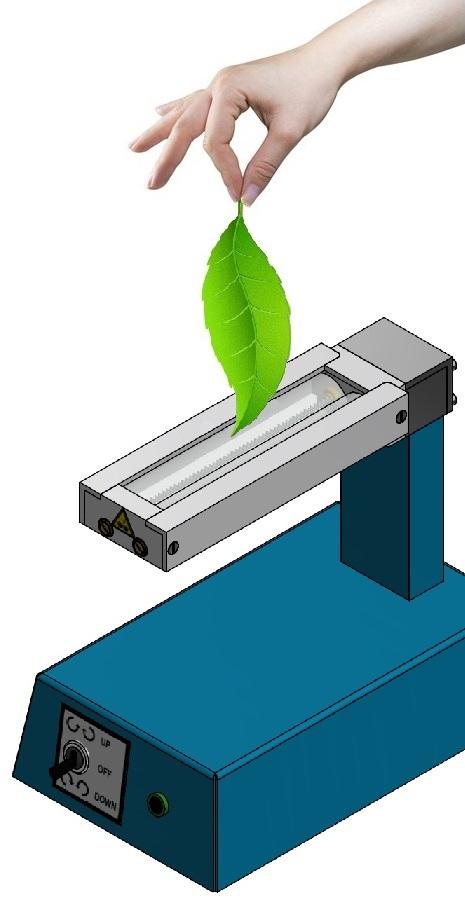

In the laboratory, spider mites are extracted from leaves using a leaf brushing machine. The leaf is fed through a rotating brush unit that dislodges mites — including eggs, larvae, nymphs, and adults — from both leaf surfaces. A water spray system washes the dislodged mites onto a collection grid suspended over a water tray, where they can be counted under a stereomicroscope. This method is far more reproducible and quantitative than manual inspection.

In scientific research, a leaf brushing machine is used for:

• standardized spider mite population assessment in monitoring programs bioassay preparation — providing defined numbers of mites for pesticide and acaricide efficacy tests
• resistance monitoring — collecting and standardizing field mite populations for comparative bioassays
• biological control trials — quantifying prey reduction after predator release
• integrated pest management programs — generating the quantitative population data required for evidence-based management decisions.

 Spider mite populations are quantified by processing a defined number of leaves through a leaf brushing machine. The extracted mites are collected on a standardized grid, and all individuals — across life stages — are counted under a stereomicroscope. Results are expressed as mites per leaf, mites per unit area, or mites per plant. This standardized procedure eliminates observer-dependent variation and enables statistically valid comparisons across samples, sites, and time points.

 Acaricide efficacy trials are standardized using three key methodological steps: (1) Pre-trial population normalization: a leaf brushing machine is used to extract defined numbers of mites in defined life stages, which are then distributed evenly across experimental replicates. (2) Controlled pesticide exposure: all replicates are treated under identical conditions. (3) Post-exposure assessment: surviving mites are re-extracted using the leaf brushing machine and counted to calculate corrected mortality rates. This workflow ensures that all trials begin with equivalent infestation densities and that survival rates reflect treatment effects rather than sampling variation.

The core equipment for spider mite pesticide efficacy testing includes: a leaf brushing machine for standardized mite extraction and population normalization, a stereomicroscope for mite counting and life-stage identification, leaf disc arenas or whole-leaf bioassay setups for pesticide application, a climate-controlled incubation chamber for defined exposure conditions, and software for dose-response analysis (e.g., probit analysis for LC50 calculation). The leaf brushing machine is the central instrument for sample preparation and post-treatment assessment.

Laboratories assess spider mite infestation levels by collecting plant material from the area of interest and processing it through a leaf brushing machine. The number of mites recovered per leaf or per defined area is recorded as the infestation density. In greenhouse and field research, this process is repeated at defined intervals to track population dynamics over time. The leaf brushing machine ensures that all samples are processed identically, enabling valid comparisons between sampling time points, treatment groups, or experimental sites.

Acaricide resistance is monitored by collecting spider mite populations from field locations and testing them in standardized dose-response bioassays. The leaf brushing machine is used to extract field populations from plant samples with defined infestation histories. The extracted populations are then exposed to a range of acaricide concentrations in leaf disc bioassays. Resistance is detected by comparing dose-response curves of field populations to susceptible reference strains. The resistance ratio (RR) — the LC50 of the field population divided by the LC50 of the reference strain — quantifies the degree of resistance.

A leaf brushing (or mite brush) machine can extract all mobile life stages of spider mites, including larvae, protonymphs, deutonymphs, and adult males and females. Eggs are also dislodged in the process and can be counted separately on the collection grid. The ability to recover and distinguish all life stages is essential for life-table bioassays, ovicidal activity testing, and studies examining stage-specific sensitivity to acaricides or biological control agents.

In Integrated Pest Management (IPM) programs, the leaf brushing machine provides the quantitative population data on which management decisions are based. It enables regular, standardized spider mite population monitoring at defined sampling points, generating data on current infestation densities that can be compared against intervention thresholds. By producing consistent, reproducible counts, it allows IPM practitioners to track population trends over time, evaluate the effectiveness of interventions, and make evidence-based decisions about whether, when, and how to intervene.

Yes. The leaf brushing machine is suitable for extracting a wide range of phytophagous mite species from plant material, including Panonychus ulmi (European red mite), Panonychus citri (citrus red mite), Tetranychus cinnabarinus (carmine spider mite), Brevipalpus spp. (false spider mites), and various Eriophyidae (rust mites and gall mites). It is also used for extracting Phytoseiidae (predatory mites) from plant material in biological control research. The brush pressure and processing speed are adjustable to accommodate the size and fragility of different arthropod species.

The leaf brushing machine delivers high inter-sample and inter-operator reproducibility when used with standardized protocols. Recovery rates — the proportion of mites present on a leaf that are successfully extracted — are consistently above 90% for mobile mite stages under standardized conditions. Operator-to-operator variation is significantly reduced compared to manual visual counting, as the mechanical extraction process is not subject to the perceptual limitations or fatigue effects that affect human counters. Published studies using leaf brushing machines report coefficients of variation (CV) of 10–20% for population counts — comparable to the biological variation in mite populations themselves.

  Manual mite sampling involves counting mites directly on the leaf surface under a hand lens or stereomicroscope, or pressing a leaf against adhesive tape and counting impressions. These methods are time-consuming, subject to observer bias, and unable to detect all life stages reliably. A leaf brushing machine extracts all life stages mechanically and presents them on a flat collection surface where counting is faster, more accurate, and fully standardized. For any research application requiring reproducible quantitative data, the leaf brushing machine is the methodologically superior approach.

Processing throughput depends on the instrument model and the leaf type being processed. Typical throughput for research-grade leaf brushing machines is 60–200 leaves per hour under standard operating conditions. High-throughput models designed for resistance screening programs can process significantly higher volumes. Detailed throughput specifications are available upon request.

In biological control research, the leaf brushing machine is used to quantify prey populations — typically spider mites — before and after the release of predatory mites or other biological control agents. By extracting mites from defined numbers of leaves at defined time intervals, researchers can calculate prey reduction rates, assess predator-prey population dynamics, and compare the efficacy of different biological control agents or release strategies. The standardized extraction procedure ensures that changes in mite populations reflect biological control effects rather than sampling artifacts.

Yes. The leaf brushing machine supports GLP compliance by providing a documented, reproducible, and auditable extraction procedure. All operational parameters — brush speed, water flow, processing time — can be recorded and standardized across a study. The instrument's mechanical operation eliminates subjective operator decisions from the extraction process. For GLP studies, the instrument requires calibration documentation and maintenance records, which are standard requirements for all laboratory equipment under GLP frameworks.

The leaf brushing machine has been successfully used with a wide range of plant species, including: roses, strawberries, beans, cucumbers, paprika, tomatoes, eggplant, cannabis, citrus species, apple, pear, hops, soybean, corn, and various ornamental species. The adjustable brush pressure allows the instrument to be adapted to leaves of different textures, sizes, and fragility — from robust bean leaves to delicate ornamental foliage.

Mite eggs are dislodged from the leaf surface along with mobile stages during the brushing process and deposited on the collection grid. Eggs are identified and counted separately from mobile stages under a stereomicroscope. Egg counting is particularly important for ovicidal activity assessments — tests that evaluate whether a pesticide or biological agent prevents egg hatching. The leaf brushing machine provides access to the egg fraction of the population in a standardized, quantifiable format.

Pesticide resistance research relies on comparing the dose-response characteristics of field-collected populations to susceptible reference strains. The leaf brushing machine supports this by: (1) enabling standardized collection of field populations from naturally infested plant material, (2) providing defined numbers of mites for bioassay initiation, (3) supporting high-throughput processing of samples from multiple geographic origins simultaneously, and (4) ensuring that the extraction process itself introduces no chemical residues that could confound bioassay results. The standardized workflow makes inter-laboratory comparisons of resistance ratios methodologically valid.

Yes. The collection grid output of the leaf brushing machine is compatible with automated image analysis systems, including flatbed scanner-based counting software and stereomicroscope-mounted digital imaging systems. Automated counting further reduces observer variation and enables high-throughput data processing. The combination of mechanical extraction and automated image counting represents the current state of the art in quantitative spider mite population assessment.

Between samples, the collection tray and water system are rinsed thoroughly with clean water. For studies requiring strict separation between treatment groups or population origins, additional decontamination with isopropanol or ethanol is recommended. The brushing unit can be cleaned with a soft brush and rinsed with water. For resistance monitoring studies where cross-contamination between field populations would compromise results, separate collection trays are used for each sample. All contact surfaces are designed from corrosion-resistant materials that withstand repeated cleaning and standard laboratory disinfectants.

Seed companies use the leaf brushing machine for: (1) Variety resistance screening — assessing the relative spider mite susceptibility of new breeding lines or commercial varieties under standardized infestation conditions, (2) Phytosanitary monitoring — detecting and quantifying mite infestations on planting material before distribution, and (3) Efficacy testing of seed treatments — evaluating whether systemic seed treatment compounds provide measurable protection against early spider mite infestation. In all these applications, the standardized extraction procedure is essential for generating defensible comparative data.

The primary data output from a leaf brushing machine is the count of extracted mites per leaf, expressed across life stages. This raw count data forms the basis for: infestation density calculations (mites/cm²), population dynamics curves, efficacy calculations (% corrected mortality), dose-response curves and LC50 estimates, resistance ratios, biological control efficacy indices (prey reduction rate, predator-prey ratio), and IPM intervention threshold assessments. All downstream calculations depend on the accuracy and reproducibility of the initial extraction step.
