The high-pressure reactors of the HiClave-F are available in standard sizes from 250 to 1,000 ml.

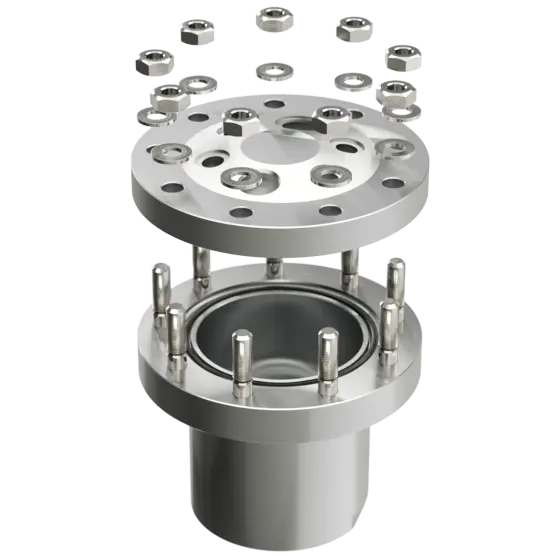

The HiClave-F features a robust flange closure for increased operating pressures and temperatures. At the same time, the F-series offers the widest selection of sealing materials..
Various container sizes and equipment options, such as funnels for liquid addition or different sensors, allow the system to be adapted to your specific laboratory requirements.

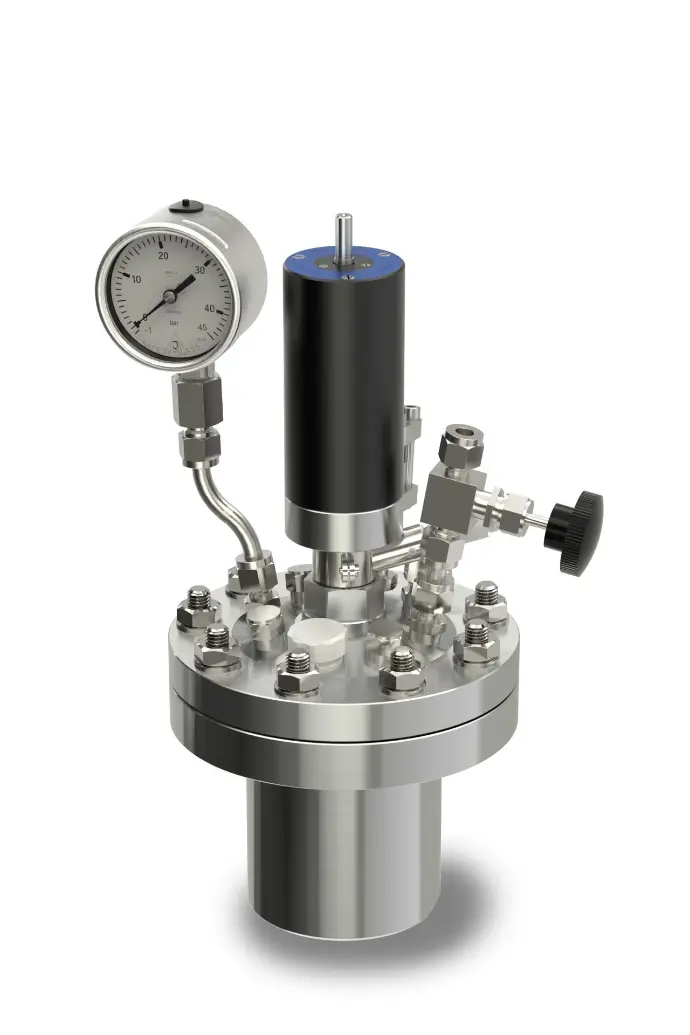

capacity
250 ml
diameter
ø 60mm
Max. Temperatur
350°C
Max. pressure
400 bar
Connections
up to 8

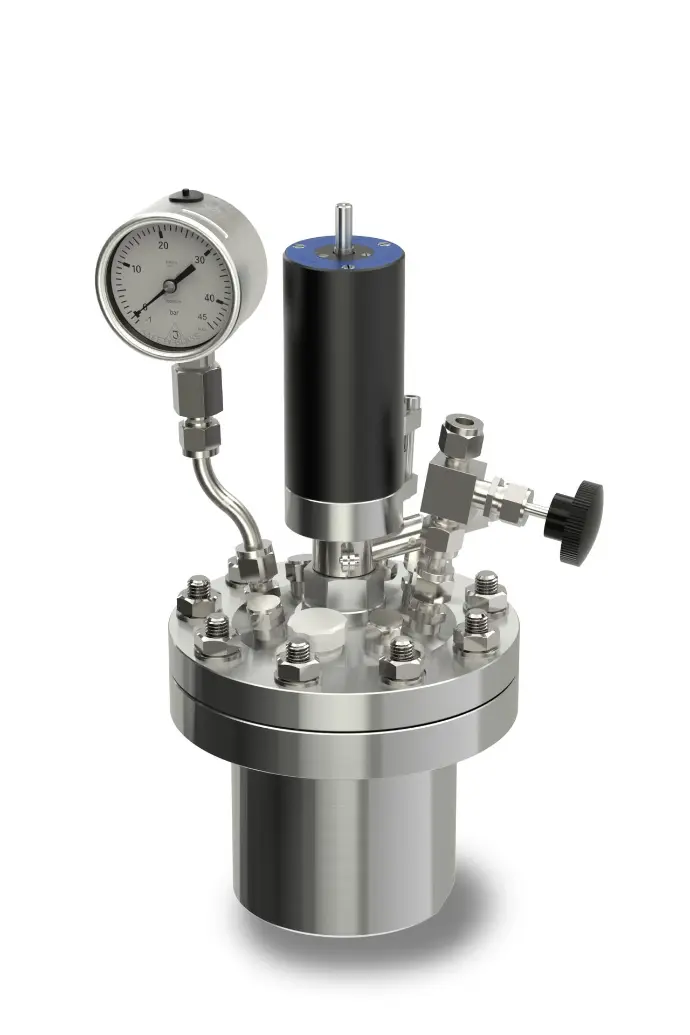

capacity
500 ml
diameter
ø 88mm
Max. Temperatur
350°C
Max. pressure
400 bar
Connections
up to 8

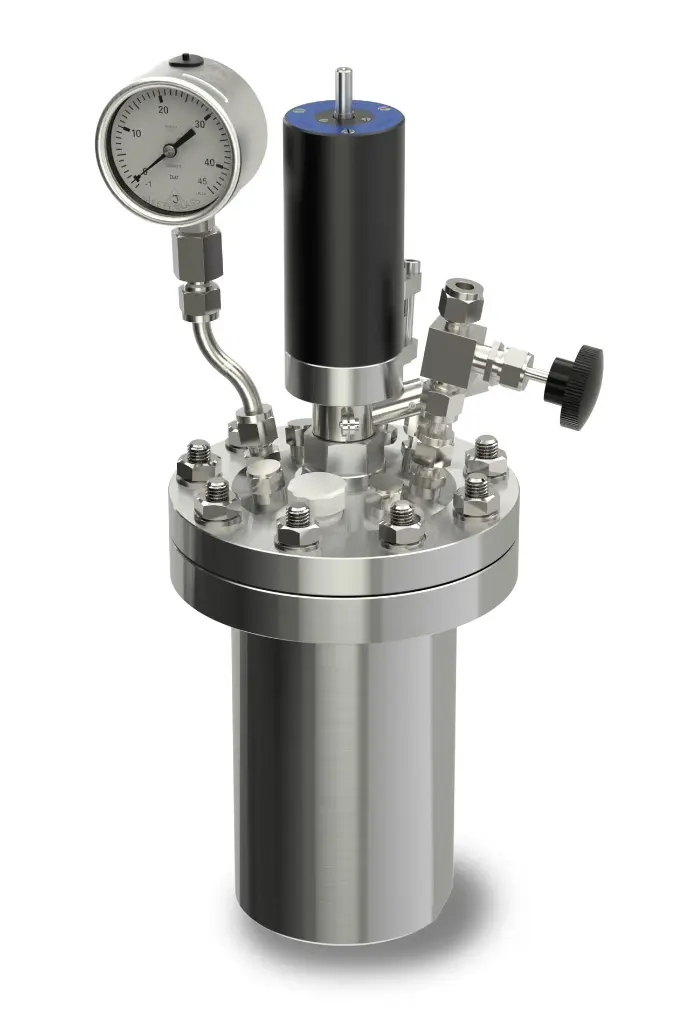

capacity
1000 ml
diameter
ø 88mm
Max. Temperatur
350°C
Max. pressure
400 bar
Connections
up to 8
You are looking for a bespoke solution?
You are looking for a bespoke solution?
Together we will configure a system according to your requirements.
Please feel free to contact us.
Material combinations
Stainless steel, Hastelloy®, Tantal or PFTFE
Max. permissible operating temperature
up to 350°C
permissible operating temperature
with PTFE
250°C
Other special features
Operation with heating and magnetic stirring plate possible
Designed for overhead mixers
Modular & compact
With a capacity of 250 to 1000 ml, our HiClave F series still offers a wide range of applications – with maximum temperatures of up to 350°C (optional up to 500°C) and working pressures of up to 400 bar.
Thanks to its modular design, the number of tests can be efficiently and quickly adapted to your specific requirements, yet the test setup remains unchanged.
Stainless steel or Hastelloy® are available as materials, with stainless steel optionally coated with tantalum.
Numerous stirring options
The HiClave F series is designed for use with magnetically coupled overhead stirrers. Various versions are available, allowing you to choose the right model for your application.

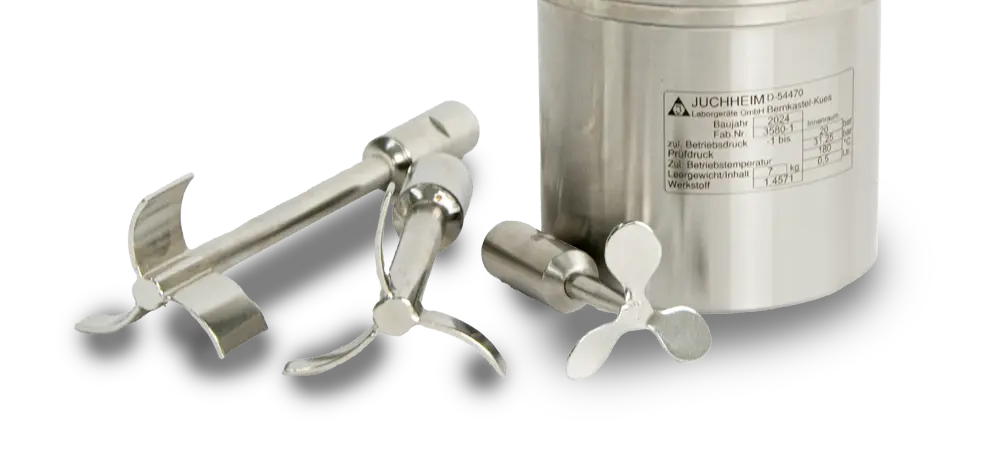

A wide selection of agitators is available: propeller agitators, anchor agitators, helical agitators, impeller agitators, or blade agitators, optionally made of PTFE, stainless steel, or Hastelloy®. Alternative agitator geometries are available upon request.
Connection options
Up to 8 connections can be attached to the centrally located agitator feedthrough. A connection for a pressure gauge and overpressure protection are included as standard equipment and are part of the scope of delivery.
For precise process temperature measurement, the system can be equipped with either a PT100 temperature sensor or a thermocouple. Numerous customization options are available to meet your specific requirements.
Variable container sizes

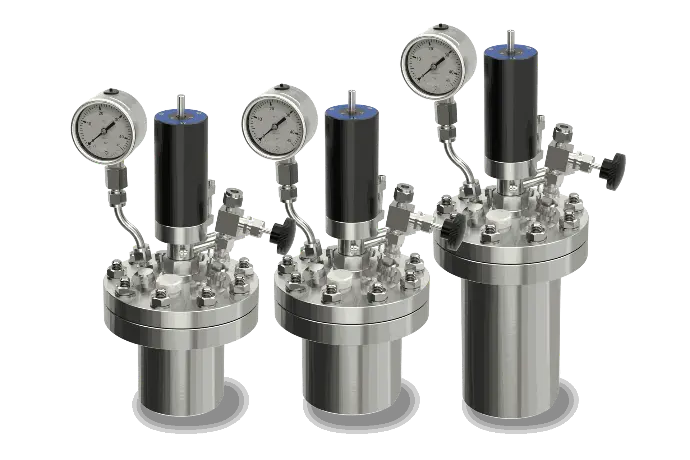

The containers are available in sizes from 250 ml to 1000 ml. These container sizes are particularly well-suited for scale-up applications when used in mini-plant systems.
They are suitable for use at temperatures up to a maximum of 350°C and can withstand pressures of up to 400 bar. Optionally, the temperature can be increased to 500°C.
Inert inner surfaces
PTFE inserts offer strong corrosion protection, are chemically resistant, and easy to clean. Tantalum or Hastelloy® are available as options, providing even greater resistance to aggressive media and high temperatures. This allows for flexible material selection to meet your specific requirements.
The PTFE inserts reduce the maximum operating temperature to 250°C.
HiClave F-System
Complete systems with various options are available for the HiClave F laboratory reactors.Tailored to your application and available budget.
Base | Eco | Plus | Pro | |
• manometer • bursting disc • Pt100 Temperature sensors • Needle valve (decompression) | ✓ | ✓ | ✓ | ✓ |
• Magnetic stirrer plate with "Heatspreader" | - | ✓ | ✓ | - |
• Comfortable lifting device for the reactor | - | - | ✓ | ✓ |
• Overhead stirrer with magnetic coupling • Heating sleeve with integrated cooling | - | - | - | ✓ |
Additional options • Sampling • Pressure Sensor • PTFE-Inserts • aeration stirrers and other stirring devices • catalyst basket | (✓) | (✓) | (✓) | (✓) |
